Tankless
Water Heaters
Enjoy
an Unlimited Supply of Hot Water!
Save Money and Save Water!
Return
to Previous Page
Electric
- Whole House Stiebel Eltron Tempra™

|
Saves Energy and Reduces Your Electric Bill
by 15-20%
|
|
**Keep in mind that the warmer your climate the
faster your water is heated to go through the unit. The colder your
climate the more units you may need to heat the water.
|
|
Featuring
Advanced Microprocessor Control
- The
electronic control system in the DHC-E does not allow the
water temperature to go above 125°F (52°C), which eliminates
the possibility that scalding may occur. On the other hand,
125°F (52°C) water is sufficiently hot for most uses.
- Controls the
temperature of the outgoing water plus or minus approximately 1/2 of 1
degree vs. the conventional tank hot water heaters that are plus or
minus 6-10 degrees.
- Controls the amount
of the power used to achieve the temperature dependant on
demand.
|
Tempra 36 shown...
The Tempra™ has several
temperature and flow sensors which feed their readings into the unit’s
proprietary microprocessor control.
-
Heating elements are engaged in
stages, achieving the temperature you desire.
-
Set the knob on the front cover and enjoy water
temperatures between 86°F (30°C) and 125°F (52°C).
-
The Tempra™ continually
monitors the water temperature it produces.
-
The Tempra™ Whole House system completely replaces a conventional
tank heater with no disruption to your comfort and hot water needs.
-
There is no need for
preventative construction, as required when using a tank type
water heater.
-
Tankless water heater
system
is not subject to seismic code.
-
Exclusive Tempra™ line of
residential tankless electric water heaters.
Backed by a
Three Year Limited Warranty -
Takes up considerably less space
than the conventional tank hot water heaters.
-
Keeps heating water instantly as you
require.
Setup requirements and
Specifications:
|
|
Model
|
|
Tempra™
12
|
Tempra™
15
|
Tempra™
20
|
Tempra™
24
|
Tempra™
29
|
Tempra™
36
|
|
Phase
|
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Voltage
|
V
|
208
|
240
|
208
|
240
|
208
|
240
|
208
|
240
|
208
|
240
|
208
|
240
|
|
Wattage
|
kW
|
9
|
12
|
10.8
|
14.4
|
14.4
|
19.2
|
18
|
24
|
21.6
|
28.8
|
27
|
36
|
|
Amperage
|
A
|
44
|
50
|
52
|
60
|
70
|
80
|
88
|
100
|
105
|
120
|
132
|
150
|
|
Min. required circuit
breaker size
|
A
|
60
|
60
|
2x40
|
2x40
|
2x50
|
2x50
|
2x60
|
2x60
|
3x50
|
3x50
|
3x60
|
3x60
|
|
Recommended wire size
|
AWG COPPER
|
6
|
6
|
2x8
|
2x8
|
2x8
|
2x8
|
2x6
|
2x6
|
3x8
|
3x8
|
3x6
|
3x6
|
|
Maximum temperature
increase
|
@1.50 GPM
|
41
|
54
|
49
|
65
|
66
|
88
|
82
|
92
|
92
|
92
|
92
|
92
|
|
above
ambient water temp.
|
@2.25 GPM
|
27
|
36
|
37
|
43
|
44
|
58
|
54
|
73
|
66
|
87
|
82
|
92
|
|
|
@3.00 GPM
|
20
|
27
|
25
|
33
|
33
|
44
|
41
|
54
|
49
|
66
|
61
|
82
|
| |
@4.50 GPM
|
-
|
-
|
-
|
-
|
22
|
29
|
27
|
37
|
33
|
44
|
41
|
55
|
|
Min. water flow to
activate unit
|
GPM / Lmin
|
0.29 / 1.1
|
0.58 / 2.2
|
0.58 / 2.2
|
0.58 / 2.2
|
0.87 / 3.3
|
0.87 / 3.3
|
|
Weight
|
Lb / Kg
|
15/6.8
|
18/8.1
|
21/9.5
|
18/8.1
|
24.25/11
|
24.25/11
|
|
Nominal water volume
|
Gal / L
|
0.13/0.5
|
0.26/1.0
|
0.26/1.0
|
0.26/1.0
|
0.39/1.5
|
0.39/1.5
|
|
Width
|
inch / cm
|
14
9/16/ 37
|
14
9/16/ 37
|
14
9/16/ 37
|
14
9/16 / 37
|
21 3/4 / 55.2
|
21 3/4 / 55.2
|
|
Height
|
inch / cm
|
|
|
Depth
|
inch / cm
|
4 5/8 / 11.6
|
|
Working pressure
|
PSI / BAR
|
150 / 10
|
|
Tested to pressure
|
PSI / BAR
|
300 / 20
|
|
Water connections
|
|
3 / 4" NPT
|
|
|
Electric tank type water heaters are subject to stand-by
losses which amount to "off-peak" rates to encourage their
customers to use more electricity at night and less during the day.

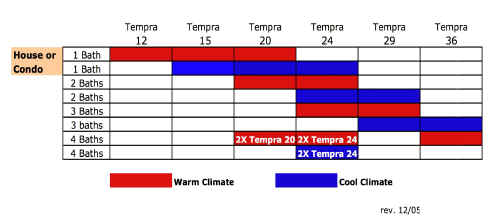

Each households hot water
needs vary. As you can see from the chart below, the Tempra 12, 15,
20 and 24 are
for the smaller 1-3 bath homes and the Tempra 29 and 36 is for the larger 3-4
bath homes. If you have more bathrooms you may require more units in
your home.
You can depend on the Tempra™
for many years to come.
Click
here for Flex Connectors
Back
to top
ATTENTION:
The
voltage, amperage, and circuit breaker specifications must be met
for this heater to function. Please make sure all requirements are
met before purchasing this heater. If you have any questions about
these requirements, please call 406-889-5288. |
|
